| Hình ?nh |
M? t? |
?ng d?ng trong ngành c?ng nghi?p |
Phiên b?n thay th? A |
Phiên b?n thay th? B |
|
|
1230-205-51-3
2.00mm Simple Ejector Header 2x10POS SMT colloid height 5.8 contact plating Gold flash LCP Black UL94V-0 with Specification A 6.7/B 4.00/C 6.5 with positioning column Tape&Reel Packing
|
Others |
|
|
|
|
1230-XX1-DX-X
2.00mm Simple Ejector Header 2×04~2x10PIN,2x13,...,25POS SMT colloid height 6.4 contact plating Au 0.38μm Sn，Au 0.76μm Sn，Gold flash LCP Black UL94V-0 with Specification A 7.6/B 3.60/C 5.3 without or with positioning column Tape&Reel Packing
|
Data communication,Industrial Control，New Energy，Others |
|
|
|
|
1230120X
1230 series Simple Ejector housing assembly 2.00mm Female 2×04~2x09POS PA66 Black UL94V-0 with drawstring
structure
|
Data communication,Industrial Control，New Energy，Others |
|
|
|
|
1236-105-J1-3
2.54mm Simple Ejector Header 2X05POS SMT contact plating Gold flash LCP Black UL94V-0 with Specification A 10.5/B 9.5 Tape&Reel Packing
|
Data communication,Industrial Control，Others |
|
|
|
|
12361106
1236 series Female Housing Pitch 2.54mm 2X3POS PA66 Black UL94V-0 fan connector with High 11.89 Width 10.0
|
Data communication,Industrial Control，Others |
|
|
|
|
12363022
1236 series Female Terminal phosphor bronze 1.27umNi+3~5um tinned under plated fan connector
|
Data communication,Industrial Control，Others |
|
|
|
|

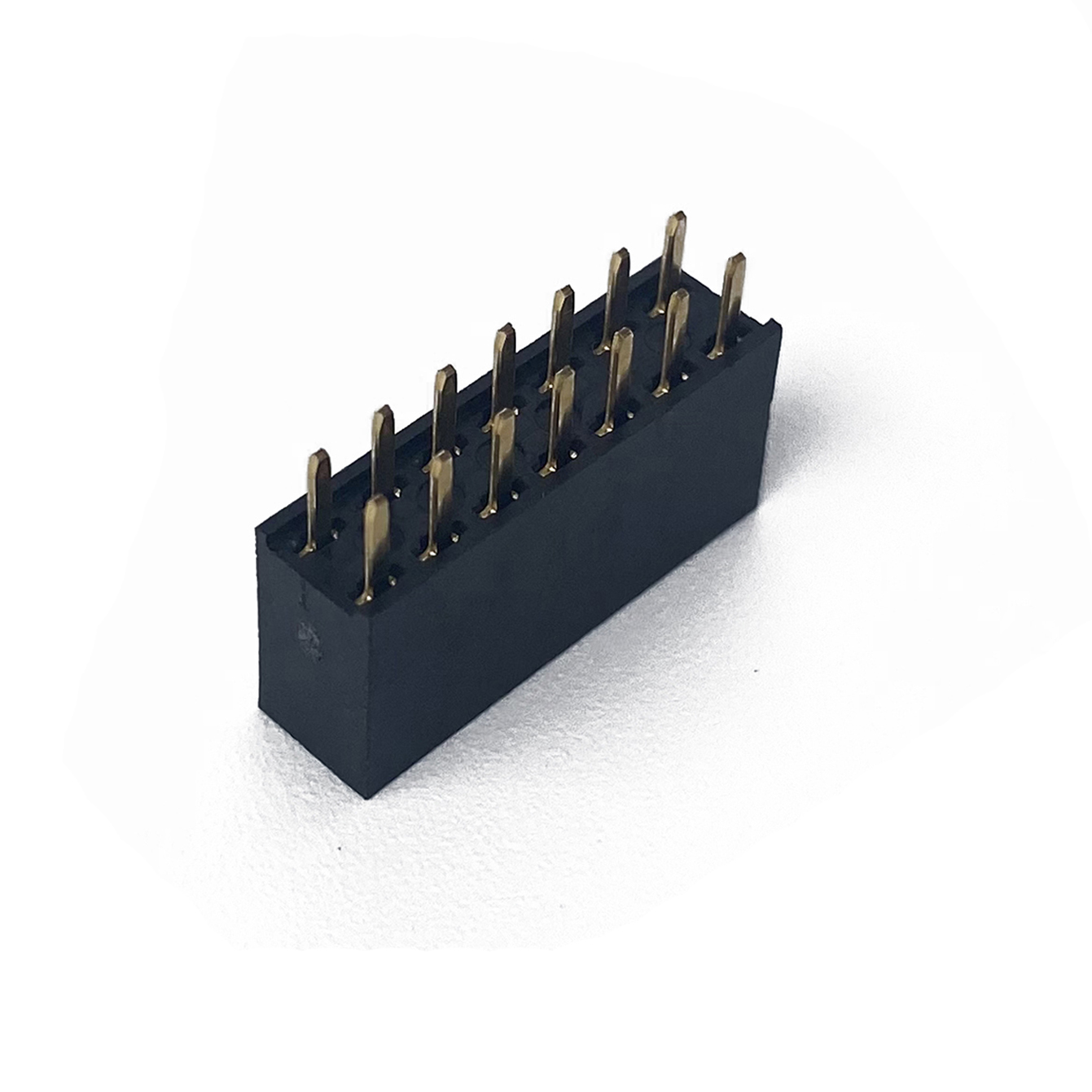

1262-141-41-1
2.54mm Receptacle 2X07POS Double Row Straight Solder colloid height 8.5 contact plating Gold flash PBT Black UL94V-0 with Harpoon lower plate size 3.00
|
Data communication,Industrial Control,New Energy，Others |
|
|
|
|

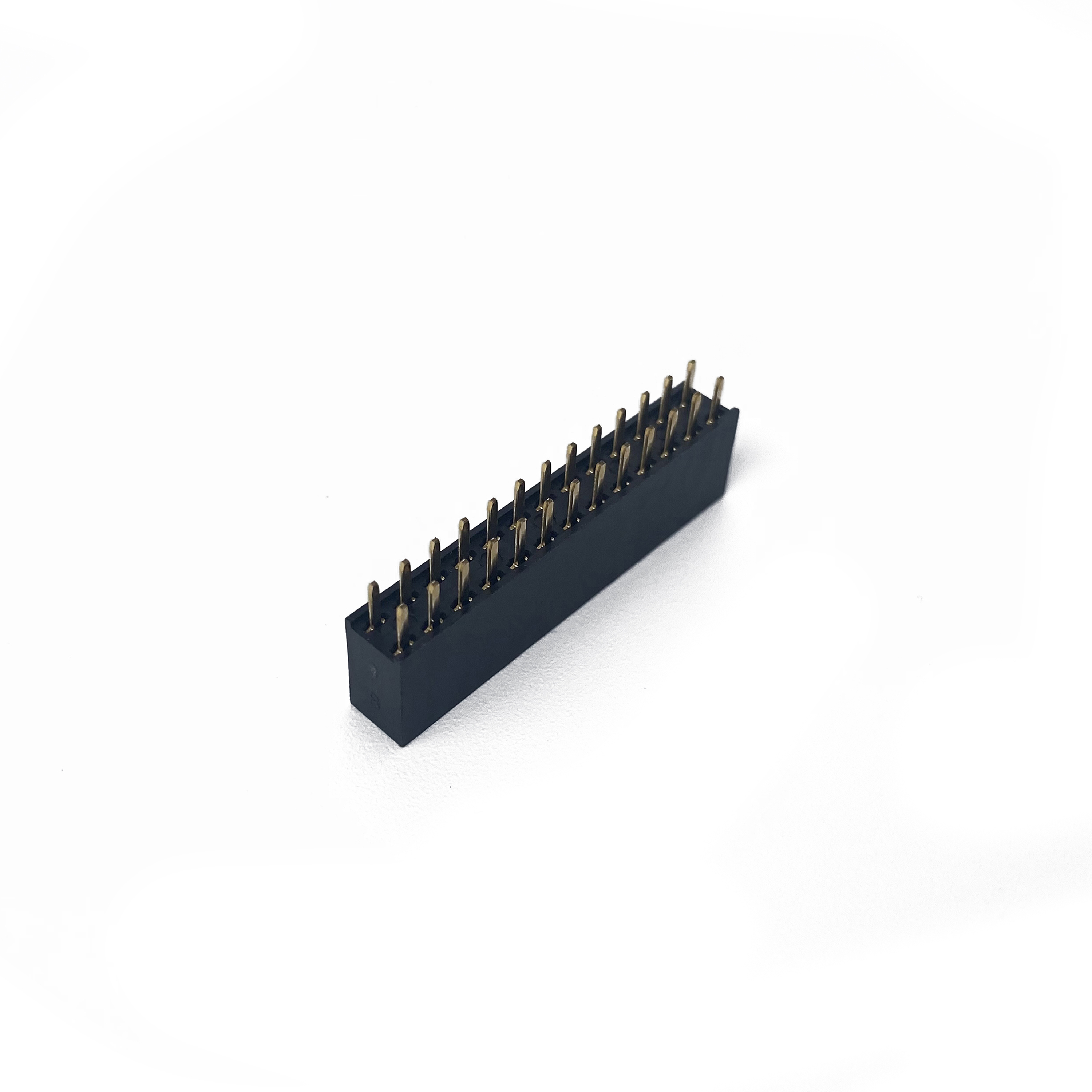

1262-261-41-1
2.54mm Receptacle 2X13POS Double Row Straight Solder colloid height 8.5 contact plating Gold flash PBT Black UL94V-0 with Harpoon lower plate size 3.0
|
Data communication,Industrial Control,New Energy，Others |
|
|
|
|

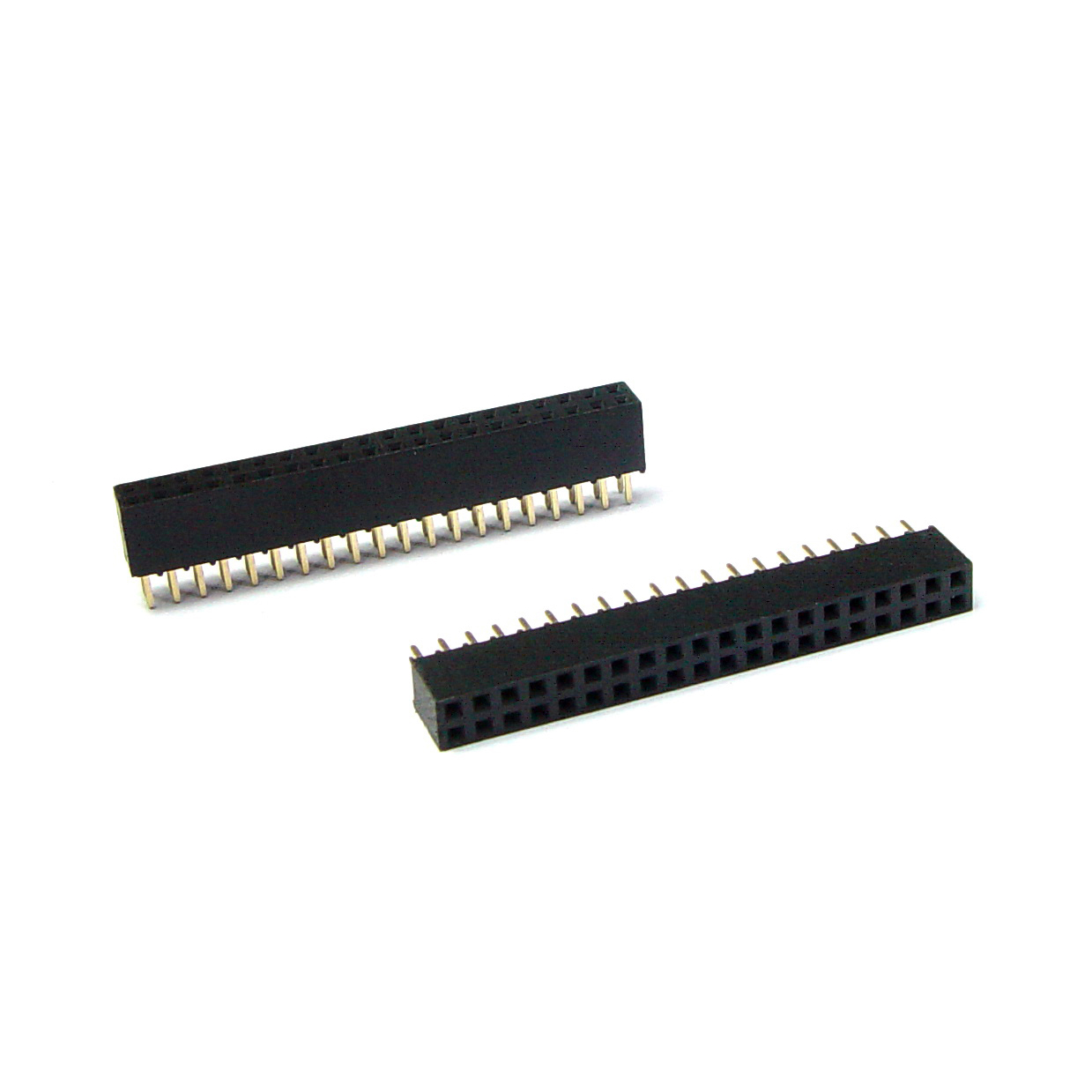

1292-401-41-3
CONN Receptacle 2x20POS 2.00mm Straight Solder double row colloid height 6.4 contact plating Gold flash LCP Black UL94V-0 with Lower plate size 3.0 harpoon
|
Data communication,Industrial Control，Others |
|
|
|
|
1292-XXX-0X-3
CONN Receptacle 2x10POS 2.00mm Straight Solder double row colloid height 6.4 contact plating Gold flash LCP Black UL94V-0 with Lower plate size 2.3 harpoon
|
Data communication,Industrial Control，Others |
|
|
|
|

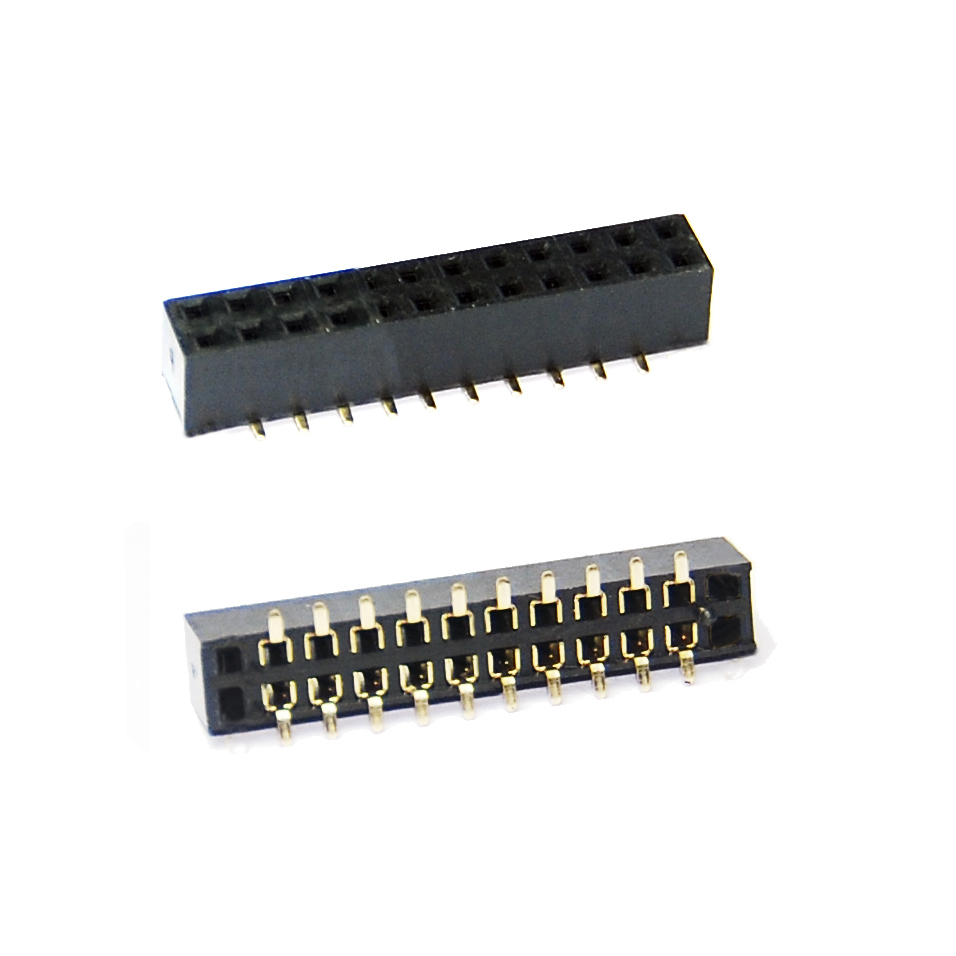

1296-122-41-C
CONN Receptacle 2x12POS 2.00mm SMT Shrapnel double row colloid height 4.30 contact plating Gold flash LCP Black UL94V-0 without 1、2、23、24POS
|
Others |
|
|
|
|
1296-XX2-4X-3
CONN Receptacle 2x05,2x25POS 2.00mm SMT shrapnel double row colloid height 4.30 contact plating Au 0.38μm Sn LCP Black UL94V-0 with Specification A 6.00/B 4.60
|
Data communication，Others |
|
|
|
|
1296-XX2-XX-3
CONN Receptacle 04,06,14,25,48+5POS 2.00mm SMT shrapnel double row colloid height 4.30 contact plating Gold flash,Au 0.25μm ，Au 0.38μm, Au 0.76μm LCP Black UL94V-0 with Specification A 6.00/B 4.60
|
Data communication，Others |
|
|
|
|
1341-XX7-17-3
1.25mm Wafer Connector 2X10,2×15,2X20P Type 7 (without horn) Straight SMT contact platingAu 0.38μm Sn LCP Black UL94V-0
|
Data communication,Industrial Control，Others |
|
|
|
|
1343-062-1B-D
2.50mm Wafer Connector 06P Right Angle male Solder Contact plating Sn PA66 Natural UL94V-0 with Angle lower plate size 3.30
|
Data communication,Industrial Control,New Energy，Others |
|
|
|
|
1343-XX1-XB-N
2.50mm Wafer Connector 02~15PINP Straight male Solder Contact plating Sn LCP Natural UL94V-0 with lower plate size 3.3, 4.3
|
Data communication,Industrial Control,New Energy，Others |
|
|
|
|
1343-XX5-XX-X
2.50mm Wafer Connector 04P Straight male Press-Fit Contact plating Sn LCP ,PA66 Natural UL94V-0 with lower plate size 3.3
|
Data communication,Industrial Control,New Energy，Others |
|
|
|
|
13431125
2.5mm Housing 1343 Fan connector 09P Straight female PA66 Black UL94V-0
|
Data communication,Industrial Control,New Energy，Others |
|
|
|
|
13431126
2.5mm Housing 1343 Fan connector 09P Straight male PA66 Black UL94V-0
|
Data communication,Industrial Control,New Energy，Others |
|
|
|
|
13432116
1343 series Housing female Wafer Connector 16P Type 1( middle latch) PA66 Black UL94V-0
|
Data communication,Industrial Control,New Energy，Others |
|
|
|
|
13433034
1343 series Male Terminal Fan connector 09P upgraded version contact plating Sn 3~5μm
|
Data communication,Industrial Control,New Energy，Others |
|
|
|
|
13433035
1343 series Male Terminal Fan connector 09P upgraded version contact plating Sn 3~5μm
|
Data communication,Industrial Control,New Energy，Others |
|
|
|
|
1344-041-2B-D
3.96mm Wafer Connector 04P Straight male Solder Contact plating Sn PA66 Natural UL94V-0 Specification A 3.7/B 14.6
|
Others |
|
|
|
|
1344-XX3-XX-X
3.96mm Wafer Connector 02,03,06P Straight male Solder Through hole Contact plating Au0.076μm, Sn LCP Natural UL94V-0 with lower plate size 3.3
|
Data communication,Industrial Control,New Energy，Others |
|
|
|
|
1408-091-11-1
CONN D-SUB Standard PCB Plug 09POS Right Angle Solder Contact plating Gold flash PBT Black UL94V-0 Front shell salt spray 24H with Front screw 90120018/rear gasket 14085003+ harpoon 14085002
|
Others |
|
|
|
|
1408-092-11-1
CONN D-SUB Standard PCB Receptacle 09POS Right Angle Solder Contact plating Gold flash PBT Black UL94V-0 Front shell salt spray 24H with Front nut 90120018/rear gasket 14085003+ harpoon 14065003
|
Others |
|
|
|
|
1408-XX7-XX-3
CONN D-SUB standard PCB plug Right Angle 09POS Solder contact plating Au0.38μm Sn ,Gold flash Sn LCP black UL94V-0 front shell salt spray 24H with Ultrashort type front screw /Rear gasket + harpoon ,front nut 14075003/ Rear gasket 14085014+ harpoon 14083087
|
Data communication,Industrial Control，New Energy，Others |
|
|
|
|
1441-090-00-3
CONN D-SUB BACKSHELL 09POS ABS Black UL94V-0
|
Data communication,Industrial Control，Others |
|
|
|
|
1632-061-09-Y
CONN Ф3.50mm stereo Audio Socket 06POS Right Angle Solder contact plating Au 0.076μm PA46 Black UL94V-0 with Standard Straigh structure
|
Data communication,Industrial Control，Others |
|
|
|
|
1822-323-XX-A
DIN41612 Connector 2.54mm Type C Right Angle male 3×32POS Solder contact plating PdNi 0.38μm + Au 2μ""Min， Gold flash Sn PBT Gray UL94V-0 with lower plate size 2.75 Riveted hole 2.5
|
Data communication,Industrial Control，New Energy，Others |
|
|
|
|
1822-332-37-A
DIN41612 Connector 2.54mm Type R Straight male 3×32POS Solder contact plating Au 0.38μm Sn PBT Gray UL94V-0 with lower plate size 5.00
|
Data communication,Industrial Control，Others |
|
|
|
|
1865-261-08-1
CONN MDR 1.27mm plug vertical 26POS Solder contact plating Au 0.76μm Sn PBT black UL94V-0
|
Data communication,Industrial Control，Others |
|
|
